Composite geomembrane

Composite geomembrane is made by combining geotextile and geomembrane through thermal compounding or adhesive bonding processes.

Commodity name： Composite geomembrane

Classification:

Geomembrane

WhatsApp:

Email:

Delivery Time

10-15 days after receiving payment

Delivery Method

Send in the best possible way

Delivery Time

Usually 15-30 days

Product Description

Composite geomembrane is made by combining geotextile and geomembrane through thermal compounding or adhesive bonding processes.

Composite geomembranes have various outstanding advantages. Firstly, it combines the reinforcement effect of geotextiles with the anti-seepage performance of geomembranes, making it more versatile in engineering applications. Geotextiles can enhance the tensile strength of composite geomembranes, preventing them from being stretched and damaged during construction and use, while geomembranes provide reliable anti-seepage barriers.

Secondly, the composite geomembrane has good corrosion resistance and anti-aging performance, and can work stably for a long time under harsh environmental conditions.

Execution standard for composite geomembrane GB/T 17642-2008
Mass per unit area（g/m2）		400	500	600	700	800	900	1000	1100
Common PE film thickness		0.2-0.35			0.3-0.6
Common specifications	One cloth, one film	150/0.25	200/0.3	300/0.3	300/0.4	300/0.5	400/0.5	400/0.6
Common specifications	Two fabrics and one film	100/0.2/100	100/0.3/100	150/0.3/150	200/0.3/200	200/0.4/200	200/0.5/200	250/0.5/250
Nominal fracture strength（KN/m）		5	7.5	10	12	14	16	18	20
Longitudinal and transverse fracture strength（KN/m）≥		5	7.5	10	12	14	16	18	20
Longitudinal and transverse standard strength corresponding to elongation%		30~100
CBR top breaking strength rate/KN≥		1.1	1.5	1.9	2.2	2.5	2.8	3	3.2
Longitudinal and transverse tearing strength ratio/KN≥		0.15	0.25	0.32	0.4	0.48	0.56	0.32	0.7
Resistant to hydrostatic pressure/MPa		0.2	0.3	0.4	0.5	0.6	0.7	0.8	1
	One cloth, one film	0.4	0.5	0.6	0.8	1	1.2	1.4	1.6
	Two fabrics and one film	0.5	0.6	0.8	1	1.2	1.4	1.6	1.8
Peel strength /（N/cm）		6
Vertical permeability coefficient/（cm/s）		According to design or contract requirements
Width deviation/%		-1

Key words:

Composite geomembrane

Factory Appearance

The main products are HDPE unidirectional geogrid, LDPE geomembrane, composite geomembrane, geogrid welding machine, geogrid (HDPE unidirectional Geogrid, bidirectional Geogrid, steel-plastic Geogrid, fiberglass geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, Fiberglass Geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, PE pipe, Non-woven geotextiles, composite geotextiles, geobags) geonet, Composite drainage network, plastic geomesh, geoglass, bentonite synthetic blanket, plastic film, PO film PE film and other geosynthetic materials.

Packaging And Delivery

Our annual outputs have exceeded 300 million square meters, Our main markets are Europe, North America, South America, Australia, some African and Asian countries. exporting to more than 40 countries. We assure not only steady production capability and on-time shipments, but also professional skilled workers and better the quality of products For the satisfaction of our customers.

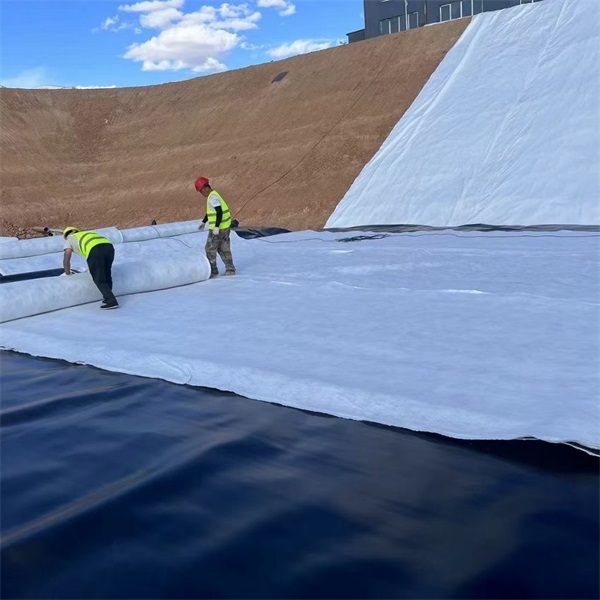

Application Cases

These products have been widely used in more than 300 projects in the fields of environmental protection, expressways, railways, golf courses, etc. The company has accumulated rich engineering experience. It enjoys a reputation of "good quality and high standard" in the industry, and has received unanimous praise from the engineering community and a large number of users. Moreover, it has established close cooperative relationships with dozens of scientific research and design units and universities across the country.

Customer visit

The company always adheres to the business philosophy of "science and technology first, integrity-based, and win-win coexistence", and sincerely hopes to cooperate extensively with friends at home and abroad to jointly draw a magnificent blueprint!

Customer Feedback

WHY CHOOSE US

High Cost Performance

High quality products and great prices.

Guarantee Quality

Product quality meets international quality inspection standards.

Advanced Equipment

We have introduced the latest production equipment.

Good Service

We have a professional team to serve you.

FAQ

About product prices?

Prices vary from period to period due to cyclical changes in the price of raw materials.

Can you send samples?

Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

How long is your delivery time?

Generally it is 5-10 days . It is according to quantity.

How many SQM of one container can load?

Please contact me by the email or whatsapp,I will send details to you. According to many years of exporting experience,we can save the container space as much as possible.

Can I go to your factory to visit?

Of course, we welcome customers from all over the world to visit our factory.

What is the roll width of your Geotextile Geomembrane ?

The roll width range from 1.5m to 8m. In 20' container,width often in 5.8m;in 40' container,width often in 7m.
