Filament spunbond nonwoven geotextile
Filamentary spunbond nonwoven geotextile is a nonwoven geosynthetic material made of continuous filaments through a spunbond process. Because it is composed of continuous filaments, its tensile strength and tear strength are relatively high, and it can withstand greater stress and strain, and can effectively resist the effects of soil and other external loads in geotechnical applications.
- Commodity name： Filament spunbond nonwoven geotextile
Delivery Time
10-15 days after receiving payment
Delivery Method
Send in the best possible way
Delivery Time
Usually 15-30 days
- Product Description
-
It is manufactured through a filament spunbond nonwoven process and has the following salient features:
High strength: The structure of the filament gives it excellent tensile strength and can withstand large external forces and loads. For example, in large-scale filling projects, it can effectively prevent the tensile deformation and rupture of soil.
Good uniformity: The production process ensures uniform performance of the material in all directions, ensuring stability and reliability in engineering applications.
Excellent corrosion resistance: It can maintain stable performance for a long time under various harsh environmental conditions and is not corroded by chemicals such as acids and alkalis. Excellent performance in land remediation projects in some chemically contaminated areas.
Filament spunbond nonwoven geotextiles have a wide range of applications:

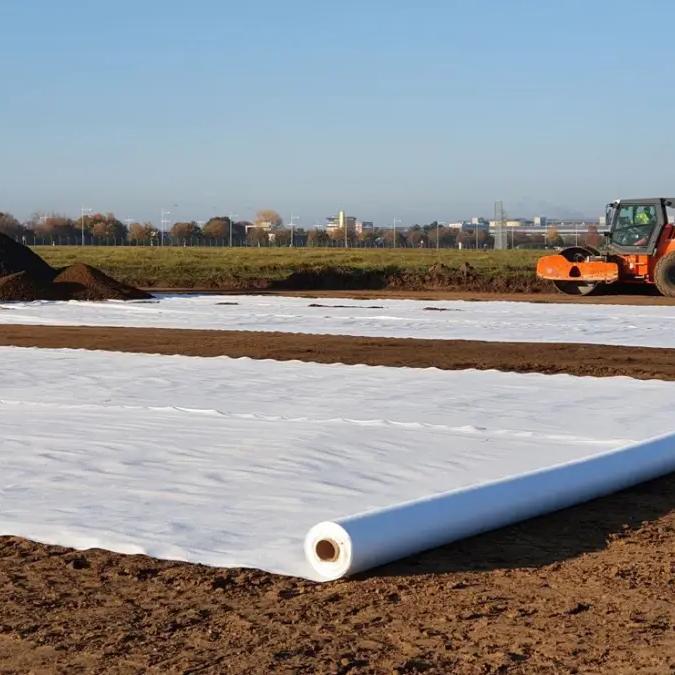

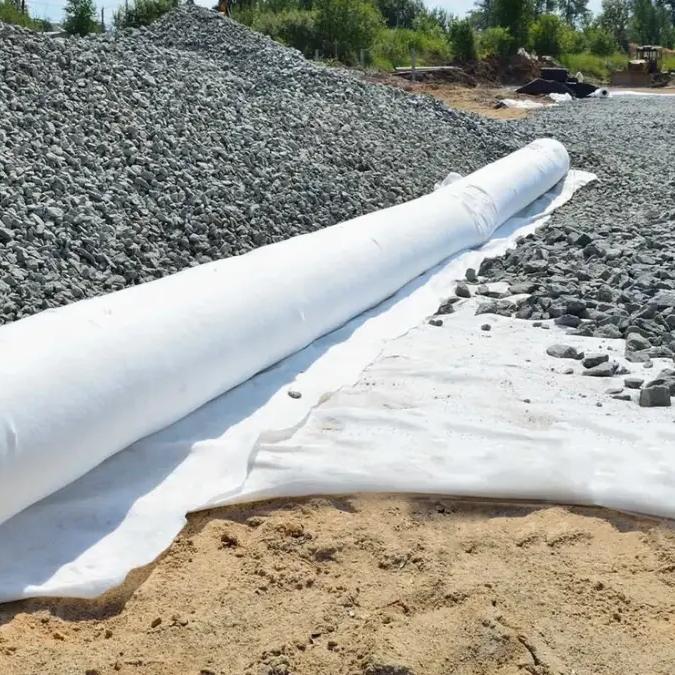

road works
It is used to strengthen the base layer, improve the load-bearing capacity of the road, and reduce uneven settlement of the road surface.
Acts as an isolation layer to prevent mutual interference between different material layers.
Water Conservancy Project
Used for anti-seepage treatment of reservoirs and channels, effectively reducing leakage losses of water resources.
As a slope protection material, it enhances the erosion resistance of river banks and embankments.
In the field of environmental protection:
Used to cover and isolate landfills to prevent the spread of harmful substances.
Ltem Value Specification 100 150 200 300 400 500 600 800 Thickness mm 0.8 1.2 1.6 2.2 2.8 3.4 4.2 5.5 Longitudinal and transverse rupture strength（KN/M） 4.5 7.5 10.0 15.0 20.0 25.0 30.0 40.0 Intensty corresponding to the standard vertical and horizontal elongation（%） 40~80 CBR bursting strength（KN） 0.8 1.6 1.9 2.9 3.9 5.3 6.4 7.9 Vertical and horizontal tear（KN） 0.14 0.21 0.28 0.42 0.56 0.70 0.82 1.10 Sieve size O（mm） 0.05~0.20 Vertical Pemeability Coefficient K*(10-1~10-3) K=1.0~9.9cm/s Width Variation % -0.5 Deviation of mass per unit area -5
Key words:
Filament spunbond nonwoven geotextile
Factory Appearance
The main products are HDPE unidirectional geogrid, LDPE geomembrane, composite geomembrane, geogrid welding machine, geogrid (HDPE unidirectional Geogrid, bidirectional Geogrid, steel-plastic Geogrid, fiberglass geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, Fiberglass Geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, PE pipe, Non-woven geotextiles, composite geotextiles, geobags) geonet, Composite drainage network, plastic geomesh, geoglass, bentonite synthetic blanket, plastic film, PO film PE film and other geosynthetic materials.

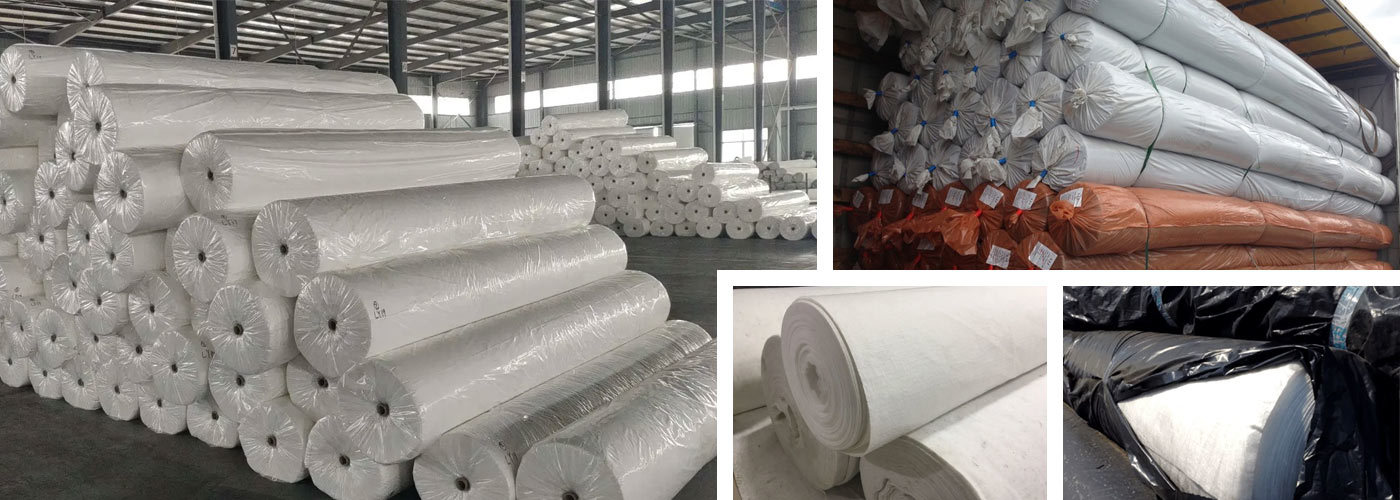

Packaging And Delivery
Our annual outputs have exceeded 300 million square meters, Our main markets are Europe, North America, South America, Australia, some African and Asian countries. exporting to more than 40 countries. We assure not only steady production capability and on-time shipments, but also professional skilled workers and better the quality of products For the satisfaction of our customers.
Application Cases
These products have been widely used in more than 300 projects in the fields of environmental protection, expressways, railways, golf courses, etc. The company has accumulated rich engineering experience. It enjoys a reputation of "good quality and high standard" in the industry, and has received unanimous praise from the engineering community and a large number of users. Moreover, it has established close cooperative relationships with dozens of scientific research and design units and universities across the country.
