High-strength polypropylene staple fiber needle-punched geotextile
Due to the use of high-strength polypropylene short fibers and the use of a needle punching process to tightly entangle the fibers, the geotextile has high tensile strength and tear strength and can withstand greater external forces.
- Commodity name： High-strength polypropylene staple fiber needle-punched geotextile
Delivery Time
10-15 days after receiving payment
Delivery Method
Send in the best possible way
Delivery Time
Usually 15-30 days
- Product Description
-
High-strength polypropylene staple fiber needle-punched geotextile has various application scenarios:
In port engineering
Used to reinforce the foundation of dock yards and improve load-bearing capacity.
As a protective layer for breakwaters, it resists the impact of waves.
In mining engineering
Used for reinforcement and anti-seepage of tailings dams to ensure the safety of tailings ponds.
Protect open-pit mine slopes to reduce ore slippage and soil erosion.
In tunnel projects
As the waterproof layer and reinforcing layer of tunnel lining, it improves the waterproof performance and structural strength of the tunnel.
In artificial lakes and landscape projects:
Used for anti-seepage and reinforcement of lake bottoms and revetments to maintain the stability of water bodies.
Ltem Unit Value 100 200 300 400 500 600 800 1000 Mass per unit g/m2 100（1±5%） 200（1±6%） 300（1±6%） 400（1±6%） 500（1±6%） 600（1±6%） 800（1±6%） 1000（1±6%） Grip strength（MD and TD） N ≥450 ≥900 ≥1250 ≥1600 ≥2000 ≥2400 ≥3000 ≥3600 Grip extension（MD and TD） % 50~90 50~100 Trapezoidal tear strength（MD and TD） N ≥175 ≥350 ≥425 ≥500 ≥580 ≥650 ≥800 ≥950 CBR bursting strength KN ≥1.25 ≥2.5 ≥3.5 ≥4.3 ≥5.3 ≥6.2 ≥7.1 ≥8.0 Breaking strength（MD and TD） KN ≥5.5 ≥11 ≥16 ≥22 ≥28 ≥34 ≥45 ≥55 Elongation at break（MD and TD） % 40~65 50~80 piercing force N ≥220 ≥430 ≥665 ≥900 ≥1200 ≥1430 ≥1900 ≥2350 thickness mm 1.4~1.7 1.8~2.2 2.4~2.8 3.0~3.5 3.6~4.0 4.0~4.4 4.8~5.2 5.6~6.0 Peel strength N/5 cm ≥80 ≥100 Anti-acid, alkaline（Polypropylene material） % Breaking strength retention rate≥90%;Elongation at break retention rate90% UV resistance strong retention rate % ≥80 Equivalent aperture（Dry sieve） mm ≤0.1 vertical permeability coefficient cm/s ≤0.2
Key words:
High-strength polypropylene staple fiber needle-punched geotextile

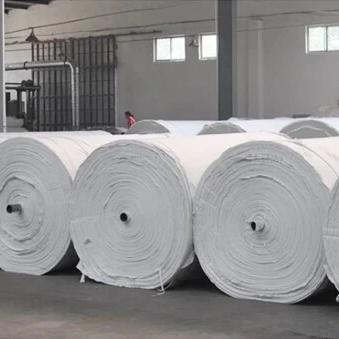

Factory Appearance
The main products are HDPE unidirectional geogrid, LDPE geomembrane, composite geomembrane, geogrid welding machine, geogrid (HDPE unidirectional Geogrid, bidirectional Geogrid, steel-plastic Geogrid, fiberglass geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, Fiberglass Geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, PE pipe, Non-woven geotextiles, composite geotextiles, geobags) geonet, Composite drainage network, plastic geomesh, geoglass, bentonite synthetic blanket, plastic film, PO film PE film and other geosynthetic materials.
Packaging And Delivery
Our annual outputs have exceeded 300 million square meters, Our main markets are Europe, North America, South America, Australia, some African and Asian countries. exporting to more than 40 countries. We assure not only steady production capability and on-time shipments, but also professional skilled workers and better the quality of products For the satisfaction of our customers.
Application Cases
These products have been widely used in more than 300 projects in the fields of environmental protection, expressways, railways, golf courses, etc. The company has accumulated rich engineering experience. It enjoys a reputation of "good quality and high standard" in the industry, and has received unanimous praise from the engineering community and a large number of users. Moreover, it has established close cooperative relationships with dozens of scientific research and design units and universities across the country.
Customer visit
The company always adheres to the business philosophy of "science and technology first, integrity-based, and win-win coexistence", and sincerely hopes to cooperate extensively with friends at home and abroad to jointly draw a magnificent blueprint!
Customer Feedback
WHY CHOOSE US
High Cost Performance
High quality products and great prices.
Guarantee Quality
Product quality meets international quality inspection standards.
Advanced Equipment
We have introduced the latest production equipment.
Good Service
We have a professional team to serve you.
FAQ
About product prices?
Can you send samples?
How long is your delivery time?
How many SQM of one container can load?
Can I go to your factory to visit?
What is the roll width of your Geotextile Geomembrane ?
