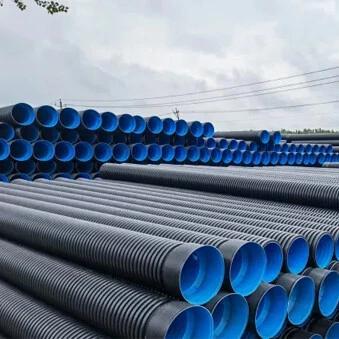

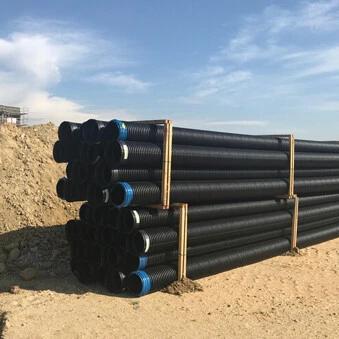

Hdpe double wall corrugated pipe

Mainly made of high-density polyethylene (HDPE) material. HDPE has good corrosion resistance, aging resistance, wear resistance and flexibility, and can adapt to different soil environments and engineering requirements.

Commodity name： Hdpe double wall corrugated pipe

Classification:

Geotube

WhatsApp:

Email:

Delivery Time

10-15 days after receiving payment

Delivery Method

Send in the best possible way

Delivery Time

Usually 15-30 days

Product Description

1. Excellent resistance to external pressure: The unique double-wall structure enables it to withstand greater external pressure and is not easy to deform.

2. Large flow: The inner wall is smooth, the water flow resistance is small, and the water flow capacity is strong.

3. Good chemical stability: Acid and alkali resistant, corrosion resistant, and can adapt to a variety of harsh environmental conditions.

4. Light weight and convenient construction: easy to transport and install, reducing construction costs and labor intensity.

2. Low cost: Compared with traditional pipes, it has a higher cost performance.

Application areas

1. Municipal drainage: used for urban sewage and rainwater discharge pipeline systems.

2. Farmland irrigation: transport farmland water to ensure the irrigation needs of crops.

3. Communication cable sheath: protect communication cables from external damage.

nominal outside diameterDN/ON	Minimum average outer diameter dcm.min	Maximum average outer diameter dcm.min	Minimum Average Inner Diameter dcm.min	Minimum layer wall thickness emin	Minimum inner wall thickness e1min	length of engagement amin
110	109.4	110.4	90	1.0	0.8	32
125	124.3	125.4	105	1.1	1.0	35
160	159.1	160.5	134	1.2	1.0	42
200	198.8	200.6	167	1.4	1.1	50
250	248.5	250.8	209	1.7	1.4	55
315	313.2	316.0	263	1.9	1.6	62
400	397.6	401.2	335	2.3	2.0	70
500	497.0	501.5	418	2.8	2.8	80
630	626.3	631.9	527	3.3	3.3	93
800	795.2	802.4	669	4.1	4.1	110
1000	994.0	1003.6	1005	5.0	5.0	130
1200	1192.8	1203.6	1005	5.0	5.0	150
