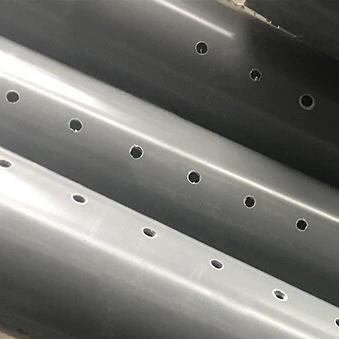

HDPE Perforated pipe
The small holes or perforations in perforated pipe allow liquids to quickly penetrate into the surrounding soil, allowing for efficient drainage. This type of drainage can effectively lower the water table, preventing soil ponding and flooding problems.
- Commodity name： HDPE Perforated pipe
Delivery Time
10-15 days after receiving payment
Delivery Method
Send in the best possible way
Delivery Time
Usually 15-30 days
- Product Description
-
HDPE perforated pipes have many excellent characteristics:
Strong corrosion resistance: able to maintain stability in environments with various chemicals and not easily corroded.
High strength: It has good compressive and tensile resistance.
Good wear resistance: able to withstand certain friction and wear during use.
It has a wide range of applications in the following fields:
Drainage engineering: For example, in municipal drainage systems, it is used to collect and discharge rainwater and sewage.
Underground infiltration system: helps to replenish and conserve groundwater.
For example, in some new road drainage projects in cities, the use of HDPE perforated pipes can effectively remove water from the road surface and ensure the normal use of the road; In some ecological restoration projects, the installation of HDPE perforated pipes can promote rainwater infiltration into the ground and supplement groundwater resources.
National standard nominal wall thickness of water supply pipe GB/T 13663.2-2018 Nominal Size SDR41 SDR33 SDR26 SDR21 SDR17 SDR13.6 SDR11 SDR9 PE80 Nominal Press (Mpa) 0.32 0.4 0.5 0.6 0.8 1.0 1.25 1.6 PE100 Nominal Press (Mpa) 0.4 0.5 0.6 0.8 1.0 1.25 1.6 2.0 DN(mm) TK(mm) TK(mm) TK(mm) TK(mm) TK(mm) TK(mm) TK(mm) TK(mm) 16 - - - - - 2.3 20 - - - - - 2.3 2.3 25 - - - - - 2.3 2.3 3.0 32 - - - - 2.3 2.3 3.0 3.6 40 - - - 2.3 2.4 3.0 3.7 4.5 50 - - 2.3 2.4 3.0 3.7 4.6 5.6 63 - - 2.5 3.0 3.8 4.7 5.8 7.1 75 - - 2.9 3.6 4.5 5.6 6.8 8.4 90 - - 3.5 4.3 5.4 6.7 8.2 10.1 110 - - 4.2 5.3 6.6 8.1 10.0 12.3 125 - - 4.8 6.0 7.4 9.2 11.4 14.0 140 - - 5.4 6.7 8.3 10.3 12.7 15.7 160 - - 6.2 7.7 9.5 11.8 14.6 17.9 180 - - 6.9 8.6 10.7 13.3 16.4 20.1 200 - - 7.7 9.6 11.9 14.7 18.2 22.4 225 - - 8.6 10.8 13.4 16.6 20.5 25.2 250 - - 9.6 11.9 14.8 18.4 22.7 27.9 280 - - 10.7 13.4 16.6 20.6 25.4 31.3 315 7.7 9.7 12.1 15.0 18.7 23.2 28.6 35.2 355 8.7 10.9 13.6 16.9 21.1 26.1 32.2 39.7 400 9.8 12.3 15.3 19.1 23.7 29.4 36.3 44.7 450 11.0 13.8 17.2 21.5 26.7 33.1 40.9 50.3 500 12.3 15.3 19.1 23.9 29.7 36.8 45.4 55.8 560 13.7 17.2 21.4 26.7 33.2 41.2 50.8 62.5 630 15.4 19.3 24.1 30.0 37.4 46.3 57.2 70.3 710 17.4 21.8 27.2 33.9 42.1 52.2 64.5 79.3 800 19.6 24.5 30.6 38.1 47.4 58.8 72.6 89.3 900 22.0 27.6 34.4 42.9 53.3 66.2 81.7 - 1000 24.5 30.6 38.2 47.7 59.3 72.5 90.2 - 1200 29.4 36.7 45.9 57.2 67.9 88.2 - - 1400 34.3 42.9 53.5 66.7 82.4 102.9 - - 1600 39.2 49.0 61.2 76.2 94.1 117..6 - - 1800 43.8 54.5 69.1 85.7 105.9 - - - 2000 48.8 60.6 76.9 95.2 117.6 - - - 2250 55.0 70.0 86.0 107.2 - - - - 2500 61.2 77.7 95.6 119.1 - - - -
Key words:
HDPE Perforated pipe
Factory Appearance
The main products are HDPE unidirectional geogrid, LDPE geomembrane, composite geomembrane, geogrid welding machine, geogrid (HDPE unidirectional Geogrid, bidirectional Geogrid, steel-plastic Geogrid, fiberglass geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, Fiberglass Geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, PE pipe, Non-woven geotextiles, composite geotextiles, geobags) geonet, Composite drainage network, plastic geomesh, geoglass, bentonite synthetic blanket, plastic film, PO film PE film and other geosynthetic materials.
Packaging And Delivery
Our annual outputs have exceeded 300 million square meters, Our main markets are Europe, North America, South America, Australia, some African and Asian countries. exporting to more than 40 countries. We assure not only steady production capability and on-time shipments, but also professional skilled workers and better the quality of products For the satisfaction of our customers.
Application Cases
These products have been widely used in more than 300 projects in the fields of environmental protection, expressways, railways, golf courses, etc. The company has accumulated rich engineering experience. It enjoys a reputation of "good quality and high standard" in the industry, and has received unanimous praise from the engineering community and a large number of users. Moreover, it has established close cooperative relationships with dozens of scientific research and design units and universities across the country.
Customer visit
The company always adheres to the business philosophy of "science and technology first, integrity-based, and win-win coexistence", and sincerely hopes to cooperate extensively with friends at home and abroad to jointly draw a magnificent blueprint!
Customer Feedback
WHY CHOOSE US
High Cost Performance
High quality products and great prices.
Guarantee Quality
Product quality meets international quality inspection standards.
Advanced Equipment
We have introduced the latest production equipment.
Good Service
We have a professional team to serve you.
FAQ
About product prices?
Can you send samples?
How long is your delivery time?
How many SQM of one container can load?
Can I go to your factory to visit?
What is the roll width of your Geotextile Geomembrane ?
