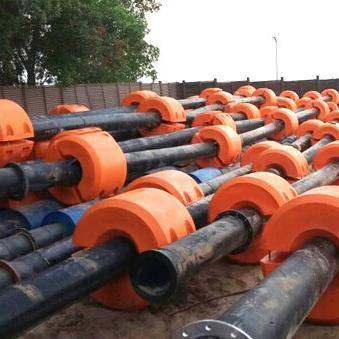

HDPE plastic dredging pipe

HDPE material has high flexibility, which enables dredging pipes to adapt to different terrains and working conditions. In dredging operations, the pipe may need to be bent, coiled or withstand certain pressure deformation, and HDPE plastic dredging pipes can meet these requirements well.

  • Commodity name: HDPE plastic dredging pipe

Classification:


SHANDONG JINGU NEW MATERIALS CO., LTD.
SHANDONG JINGU NEW MATERIALS CO., LTD.
SHANDONG JINGU NEW MATERIALS CO., LTD.
SHANDONG JINGU NEW MATERIALS CO., LTD.
SHANDONG JINGU NEW MATERIALS CO., LTD.
SHANDONG JINGU NEW MATERIALS CO., LTD.

Delivery Time

10-15 days after receiving payment

Delivery Method

Send in the best possible way

Delivery Time

Usually 15-30 days

  • Product Description
  • 1. Strong wear resistance: During the dredging process, there is often friction with particles such as sand and stones. HDPE plastic dredging pipe can better resist this wear and extend its service life.

    2. Excellent corrosion resistance: It can remain stable in various harsh water and soil environments and will not be corroded.

    3. Good impact resistance: It can withstand external force impacts that may be encountered during dredging operations.

    4. Good sealing performance: Ensure that materials will not leak during dredging.

    Advantages

    1. Light weight: Easy to transport and install, reducing engineering costs.

    2. Good flexibility: Can adapt to different terrains and construction conditions.

    3. Low maintenance cost: Due to its durability, it reduces the cost of later maintenance and replacement.

    PE100 0.4MPa 0.5MPa 0.6MPa 0.8MPa 1.0MPa 1.25MPa 1.6MPa 2.0MPa 2.5MPa
    OD PN4 PN5 PN6 PN8 PN10 PN12.5 PN16 PN20 PN25
    SDR41 SDR33 SDR26 SDR21 SDR17 SDR13.6 SDR11 SDR9 SDR7.4
    Wall Thickness (en)
    75 - - 2.9 3.6 4.5 5.6 6.8 8.4 10.3
    90 - - 3.5 4.3 5.4 6.7 8.2 10.1 12.3
    110 - - 4.2 5.3 6.6 8.1 10.0 12.3 15.1
    125 - - 4.8 6.0 7.4 9.2 11.4 14.0 17.1
    140 - - 5.4 6.7 8.3 10.3 12.7 15.7 19.2
    160 - - 6.2 7.7 9.5 11.8 14.6 17.9 21.9
    180 - - 6.9 8.6 10.7 13.3 16.4 20.1 24.6
    200 - - 7.7 9.6 11.9 14.7 18.2 22.4 27.4
    225 - - 8.6 10.8 13.4 16.6 20.5 25.2 30.8
    250 - - 9.6 11.9 14.8 18.4 22.7 27.9 34.2
    280 - - 10.7 13.4 16.6 20.6 25.4 31.3 38.3
    315 7.7 9.7 12.1 15.0 18.7 23.2 28.6 35.2 43.1
    355 8.7 10.9 13.6 16.9 21.1 26.1 32.2 39.7 48.5
    400 9.8 12.3 15.3 19.1 23.7 29.4 36.6 44.7 54.7
    450 11.1 13.8 17.2 21.5 26.7 33.1 40.9 50.3 61.5
    500 12.3 15.3 19.1 23.96 29.7 36.8 45.4 55.8 -
    560 13.7 17.2 21.4 26.7 33.2 41.2 50.8 62.5 -
    630 15.4 19.3 24.1 30.0 37.4 46.3 57.2 70.3 -
    710 17.4 21.8 27.2 33.9 42.1 52.2 64.5 79.3 -
    800 19.6 24.5 30.6 38.1 47.4 58.8 72.6 89.3 -
    900 22.0 27.6 34.4 42.9 53.3 66.2 81.7 - -
    1000 24.5 30.6 38.2 47.7 59.3 72.5 90.2 - -
    1200 29.4 36.7 45.9 57.2 67.9 88.2 - - -

Key words:

HDPE plastic dredging pipe

Factory Appearance

The main products include HDPE geomembrane, HDPE high-density geomembrane, LDPE geomembrane, smooth geomembrane, rough geomembrane, composite geomembrane, column geomembrane, liner geomembrane, waterproof board, geotextile, geogrid, bentonite synthetic blanket and other geosynthetics.

1
1
1
1

Packaging And Delivery

Our annual output has exceeded 300 million square meters, with our main markets being South America, Australia, parts of Asia and Africa, and our products are exported to more than 40 countries. We not only guarantee stable production capacity and on-time delivery, but also have professional technical workers and are constantly improving product quality to meet customer needs.

Application Cases

These products have been widely used in more than 300 projects in the fields of environmental protection, expressways, railways, golf courses, etc. The company has accumulated rich engineering experience. It enjoys a reputation of "good quality and high standard" in the industry, and has received unanimous praise from the engineering community and a large number of users. Moreover, it has established close cooperative relationships with dozens of scientific research and design units and universities across the country.

Customer visit

The company always adheres to the business philosophy of "science and technology first, integrity-based, and win-win coexistence", and sincerely hopes to cooperate extensively with friends at home and abroad to jointly draw a magnificent blueprint!

SHANDONG JINGU NEW MATERIALS CO., LTD.

Customer Feedback

SHANDONG JINGU NEW MATERIALS CO., LTD.

WHY CHOOSE US

High Cost Performance

High quality products and great prices.

Guarantee Quality

Product quality meets international quality inspection standards.

Advanced Equipment

We have introduced the latest production equipment.

Good Service

We have a professional team to serve you.

FAQ

About product prices?

Prices vary from period to period due to cyclical changes in the price of raw materials.

Can you send samples?

Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

How long is your delivery time?

Generally it is 5-10 days . It is according to quantity.

How many SQM of one container can load?

Please contact me by the email or whatsapp,I will send details to you. According to many years of exporting experience,we can save the container space as much as possible.

Can I go to your factory to visit?

Of course, we welcome customers from all over the world to visit our factory.

What is the roll width of your Geotextile Geomembrane ?

The roll width range from 1.5m to 8m. In 20' container,width often in 5.8m;in 40' container,width often in 7m.
