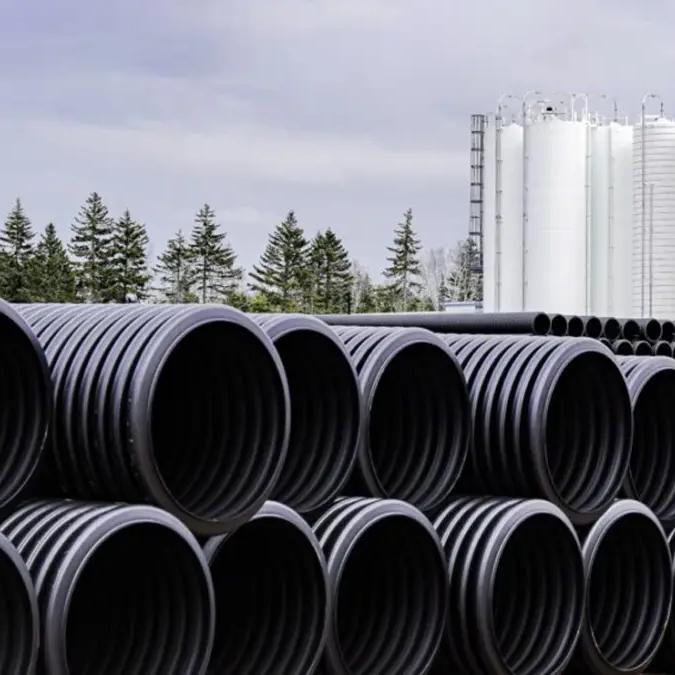

HDPE carbon corrugated pipe

Power engineering: can be used for cable protection pipes to protect cables from damage by the external environment.

Commodity name： HDPE carbon corrugated pipe

Classification:

Geotube

WhatsApp:

Email:

Delivery Time

10-15 days after receiving payment

Delivery Method

Send in the best possible way

Delivery Time

Usually 15-30 days

Product Description

1. High strength: can withstand greater external pressure, not easy to deform and rupture.

For example, in some occasions that need to be buried deep or bear heavy loads, such as drainage pipes under roads, HDPE carbon corrugated pipes can maintain good performance.

2. Good corrosion resistance: can resist the erosion of various chemicals and extend service life.

Even in harsh chemical environments, such as underground pipeline laying near chemical plants, it can operate stably.

3. Good flexibility: easy to bend and construct, adapt to complex terrain and pipeline layout.

Like laying in mountainous areas or beside winding roads, its flexibility has a great advantage.

Application areas

1. Power engineering: as a protective casing for cables.

2. Communication engineering: protect communication cables.

3. Municipal drainage: used in urban drainage systems.

Material				PE polyethylene
Operating temperature				-40℃~+90℃
Color				Black,other color available upon request
Performance		Test conditions (state)	Test method		Test data	Data unit
Melt flow rate		230℃	ASTM D1238		2.0	g/10min
Density		--	ASTM D792		0.9	g/cm2
Tensile strength at yield point		--	ASTM D638		265	g/cm2
Elongation at yield point		--	ASTM D638		8	%
Flexural elasticity system		--	ASTM D790		13100	kg/cm2
Rockwell hardness		--	ASTM D785		81	R scale
Heat deformation temperature		--	ASTM D648		90	°C
Izod impact strength		--	ASTM D256		18/137	kg-cm/cm
Drop ball impact strength		--	LCY		22	ft-lb
Shrinkage		--	ASTM D955		14	%
Hose specifica tions	Inner diameter (mm)	Outer diameter (mm)	Wall thicknes s(mm)	Weight(k g/m)	Pitch(m m)	OD and Height( m)	Packagi ng unit (m)
AD42.0	30.0± 2.0	42.0± 1.0	0.95±0.2 5	0.28	10	0.90*0.5 0	200
AD67.0	50.0± 2.0	67.0± 1.0	1.25±0.3 5	0.45	16	1.40*0.5 5	200
AD105.0	80.0± 3.0	105.0± 3.0	1.35±0.4 5	0.82	26	1.60*0.6 0	100
AD128.0	100.0± 4.0	128.0± 3.0	1.70±0.8	1.20	33	1.80*0.8 0	100/200
AD185.0	150.0± 4.0	185.0± 5.0	2.10±0.9	2.4	50	2.2*1.2	50
AD280.0	200.0± 4.0	280.0± 5.0	2.15±0.8 5	4.0	66	2.4*1.4	40
Note: The above table refers to the following standards:GB/T13381.9

Key words:

HDPE carbon corrugated pipe

Factory Appearance

The main products are HDPE unidirectional geogrid, LDPE geomembrane, composite geomembrane, geogrid welding machine, geogrid (HDPE unidirectional Geogrid, bidirectional Geogrid, steel-plastic Geogrid, fiberglass geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, Fiberglass Geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, PE pipe, Non-woven geotextiles, composite geotextiles, geobags) geonet, Composite drainage network, plastic geomesh, geoglass, bentonite synthetic blanket, plastic film, PO film PE film and other geosynthetic materials.

Packaging And Delivery

Our annual outputs have exceeded 300 million square meters, Our main markets are Europe, North America, South America, Australia, some African and Asian countries. exporting to more than 40 countries. We assure not only steady production capability and on-time shipments, but also professional skilled workers and better the quality of products For the satisfaction of our customers.

Application Cases

These products have been widely used in more than 300 projects in the fields of environmental protection, expressways, railways, golf courses, etc. The company has accumulated rich engineering experience. It enjoys a reputation of "good quality and high standard" in the industry, and has received unanimous praise from the engineering community and a large number of users. Moreover, it has established close cooperative relationships with dozens of scientific research and design units and universities across the country.

Customer visit

The company always adheres to the business philosophy of "science and technology first, integrity-based, and win-win coexistence", and sincerely hopes to cooperate extensively with friends at home and abroad to jointly draw a magnificent blueprint!

Customer Feedback

WHY CHOOSE US

High Cost Performance

High quality products and great prices.

Guarantee Quality

Product quality meets international quality inspection standards.

Advanced Equipment

We have introduced the latest production equipment.

Good Service

We have a professional team to serve you.

FAQ

About product prices?

Prices vary from period to period due to cyclical changes in the price of raw materials.

Can you send samples?

Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

How long is your delivery time?

Generally it is 5-10 days . It is according to quantity.

How many SQM of one container can load?

Please contact me by the email or whatsapp,I will send details to you. According to many years of exporting experience,we can save the container space as much as possible.

Can I go to your factory to visit?

Of course, we welcome customers from all over the world to visit our factory.

What is the roll width of your Geotextile Geomembrane ?

The roll width range from 1.5m to 8m. In 20' container,width often in 5.8m;in 40' container,width often in 7m.
