Geosynthetic clay liner
GCL is light, flexible, easy to carry and lay. It can be cut and spliced according to the needs of the project to adapt to different terrains and project requirements. The construction process is simple and fast, does not require large machinery and equipment, can greatly shorten the project cycle and reduce construction costs.
- Commodity name： Geosynthetic clay liner
Delivery Time
10-15 days after receiving payment
Delivery Method
Send in the best possible way
Delivery Time
Usually 15-30 days
- Product Description
-
It is usually composed of two layers of geotextile sandwiching a layer of bentonite. Has the following significant characteristics:
Low permeability: It can effectively prevent the penetration of liquids and gases, providing excellent isolation effect.
Self healing ability: When GCL is locally damaged, bentonite will expand in contact with water, fill and repair gaps on its own, and maintain its anti-seepage performance.
Convenient construction: Compared to traditional clay liners, GCL is lightweight, easy to transport and lay.
GCL has been widely applied in the following fields:

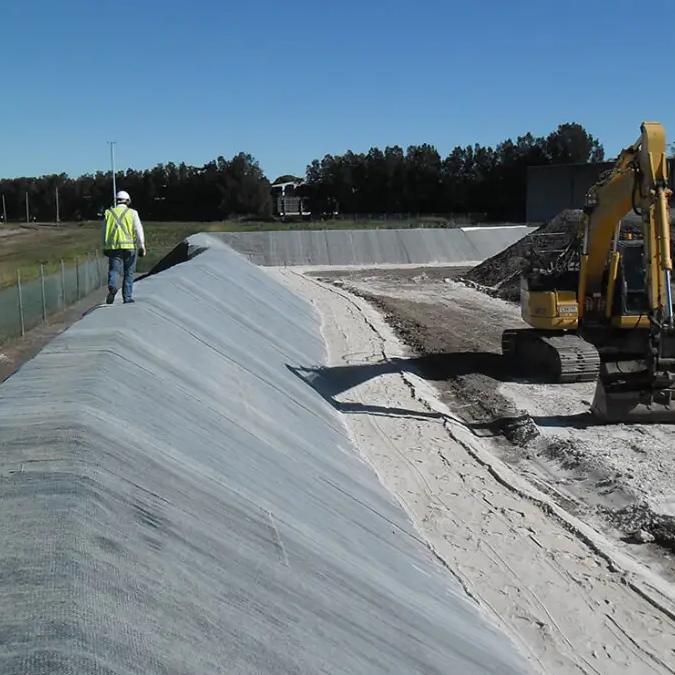

Landfill site: As an impermeable layer at the bottom and slope, it prevents leachate from polluting groundwater and the surrounding environment.
Water conservancy engineering: such as anti-seepage treatment of reservoirs and channels.
For example, in the construction of a large landfill site, using GCL as a liner can greatly reduce the risk of leachate leakage, protect the surrounding soil and water sources; When constructing small reservoirs, laying GCL can effectively reduce water leakage and improve the utilization of water resources.
Projects/ Technical data Specifications GCL-NP GCL-OF GCL-AH Weight per unit area(g/m2) ≥4000g/m2 Bentonie swell index(ml/2g） ≥24 ≥24 ≥24 Ethylene blue absorption(g/100g) ≥30 ≥30 ≥30 Tensile strength (N/100mm) ≥600 ≥700 ≥600 Racking strength(N/100mm) (for nonwovwn and woven fabric) ≥40 ≥40 — Racking strength(N/100mm) (for HDPE films and nonwoven fabric) ≥30 — Permeability(m/s) ≤5.0x110-11 ≤5.0x110-11 anti-static water pressur 0.4Mpa,1h, not seepage 0.6Mpa,1h,not seepage filtration loss (ml) ≤18 ≤18 ≤18 Bentonite durability (ml/2g) ≥20 ≥20
Key words:
Geosynthetic clay liner
Factory Appearance
The main products are HDPE unidirectional geogrid, LDPE geomembrane, composite geomembrane, geogrid welding machine, geogrid (HDPE unidirectional Geogrid, bidirectional Geogrid, steel-plastic Geogrid, fiberglass geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, Fiberglass Geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, PE pipe, Non-woven geotextiles, composite geotextiles, geobags) geonet, Composite drainage network, plastic geomesh, geoglass, bentonite synthetic blanket, plastic film, PO film PE film and other geosynthetic materials.
Packaging And Delivery
Our annual outputs have exceeded 300 million square meters, Our main markets are Europe, North America, South America, Australia, some African and Asian countries. exporting to more than 40 countries. We assure not only steady production capability and on-time shipments, but also professional skilled workers and better the quality of products For the satisfaction of our customers.
Application Cases
These products have been widely used in more than 300 projects in the fields of environmental protection, expressways, railways, golf courses, etc. The company has accumulated rich engineering experience. It enjoys a reputation of "good quality and high standard" in the industry, and has received unanimous praise from the engineering community and a large number of users. Moreover, it has established close cooperative relationships with dozens of scientific research and design units and universities across the country.
