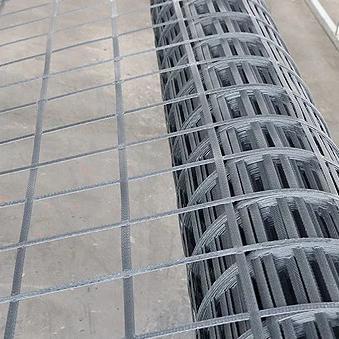

Steel-plastic geogrid
Steel-plastic geogrid is a geosynthetic material that is made of steel wire (or other high-strength metal wire) as the main load-bearing element and is wrapped with plastic (usually polyethylene or polypropylene) through a special process. It has extremely high tensile strength, can effectively enhance the stability of the soil, and withstand greater soil pressure and tension.
- Commodity name： Steel-plastic geogrid
Delivery Time
10-15 days after receiving payment
Delivery Method
Send in the best possible way
Delivery Time
Usually 15-30 days
- Product Description
-
Steel plastic geogrid has the following significant characteristics and advantages:
High strength: able to withstand large tensile and compressive forces, suitable for various complex engineering environments.
Corrosion resistance: Due to being wrapped in polyethylene, the steel wire has good corrosion resistance and can be used for a long time in harsh soil and water environments.
Good stability: It can effectively disperse soil stress and enhance soil stability.
Steel plastic geogrids are widely used in the following fields:

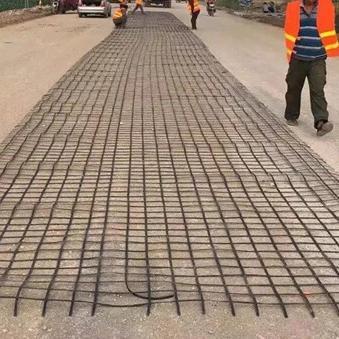

Road and railway subgrade reinforcement: Improve the bearing capacity of the subgrade and reduce uneven settlement of the subgrade.
Reinforcement of dams in hydraulic engineering: Enhancing the stability of dams to prevent slippage and collapse.
Slope protection: It can fix the soil on the slope surface, prevent soil erosion and landslides.
Index GSZ30-30 GSZ40-40 GSZ50-50 GSZ60-60 GSZ80-80 GSZ100-100 GSZ150-150 Tensile Strength KN / m ( LD ) ≥30 ≥40 ≥50 ≥60 ≥80 ≥100 ≥150 Tensile Strength KN / m ( TD ) ≥30 ≥40 ≥50 ≥60 ≥80 ≥100 ≥150 Elongation Rate ( LD TD） ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 Tensile strength at 1 % elongation ( LD ) ≥20 ≥32 ≥40 ≥48 ≥63 ≥81 ≥125 Tensile strength at 1 % elongation ( TD ) ≥20 ≥32 ≥40 ≥48 ≥63 ≥81 ≥125 Limit Peeifoece at Welded Bonded Point N ≥100 ≥100 ≥100 ≥100 ≥100 ≥100 ≥100
Key words:
Steel-plastic geogrid
Factory Appearance
The main products are HDPE unidirectional geogrid, LDPE geomembrane, composite geomembrane, geogrid welding machine, geogrid (HDPE unidirectional Geogrid, bidirectional Geogrid, steel-plastic Geogrid, fiberglass geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, Fiberglass Geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, PE pipe, Non-woven geotextiles, composite geotextiles, geobags) geonet, Composite drainage network, plastic geomesh, geoglass, bentonite synthetic blanket, plastic film, PO film PE film and other geosynthetic materials.
Packaging And Delivery
Our annual outputs have exceeded 300 million square meters, Our main markets are Europe, North America, South America, Australia, some African and Asian countries. exporting to more than 40 countries. We assure not only steady production capability and on-time shipments, but also professional skilled workers and better the quality of products For the satisfaction of our customers.
Application Cases
These products have been widely used in more than 300 projects in the fields of environmental protection, expressways, railways, golf courses, etc. The company has accumulated rich engineering experience. It enjoys a reputation of "good quality and high standard" in the industry, and has received unanimous praise from the engineering community and a large number of users. Moreover, it has established close cooperative relationships with dozens of scientific research and design units and universities across the country.
Customer visit
The company always adheres to the business philosophy of "science and technology first, integrity-based, and win-win coexistence", and sincerely hopes to cooperate extensively with friends at home and abroad to jointly draw a magnificent blueprint!
