Unidirectional stretch geogrid
It has extremely high tensile strength and rigidity in the tensile direction, which can effectively enhance the stability of the soil and withstand greater soil pressure and tension. When subjected to stress, the elongation is low, which can maintain the stability of the soil and reduce the deformation of the soil.
- Commodity name： Unidirectional stretch geogrid
Delivery Time
10-15 days after receiving payment
Delivery Method
Send in the best possible way
Delivery Time
Usually 15-30 days
- Product Description
-
Unidirectional tensile geogrid is made by extruding, punching, and longitudinally stretching polymer materials.
Its main characteristics are:
Unidirectional high strength: It has extremely high tensile strength in one direction, which can effectively limit the displacement of soil in that direction.
Good anti-aging performance: the performance remains relatively stable during long-term use.
High friction coefficient with soil: enhances the interaction between the grid and the soil.
Unidirectional tensile geogrids have a wide range of applications:
Fill engineering: such as embankments, fill slopes, etc., can improve the stability of fill and reduce settlement.
Retaining wall engineering: As a reinforcing material, it enhances the stability of the retaining wall.
Ltem Tensile strength KN/m Elongation Rate % Tensile strength with 2% Srain KN/m Tensile strength with 5% Srain KN/m TGDG 35 ≥35 ≤10 ≥10 ≥20 TGDG 50 ≥50 ≤10 ≥12 ≥28 TGDG 80 ≥80 ≤10 ≥26 ≥48 TGDG 110 ≥110 ≤10 ≥32 ≥64 TGDG 120 ≥120 ≤10 ≥38 ≥74
Key words:
Unidirectional stretch geogrid
Factory Appearance
The main products are HDPE unidirectional geogrid, LDPE geomembrane, composite geomembrane, geogrid welding machine, geogrid (HDPE unidirectional Geogrid, bidirectional Geogrid, steel-plastic Geogrid, fiberglass geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, Fiberglass Geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, PE pipe, Non-woven geotextiles, composite geotextiles, geobags) geonet, Composite drainage network, plastic geomesh, geoglass, bentonite synthetic blanket, plastic film, PO film PE film and other geosynthetic materials.
Packaging And Delivery
Our annual outputs have exceeded 300 million square meters, Our main markets are Europe, North America, South America, Australia, some African and Asian countries. exporting to more than 40 countries. We assure not only steady production capability and on-time shipments, but also professional skilled workers and better the quality of products For the satisfaction of our customers.

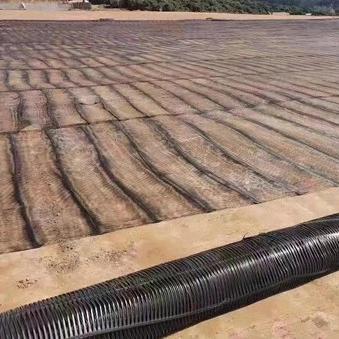

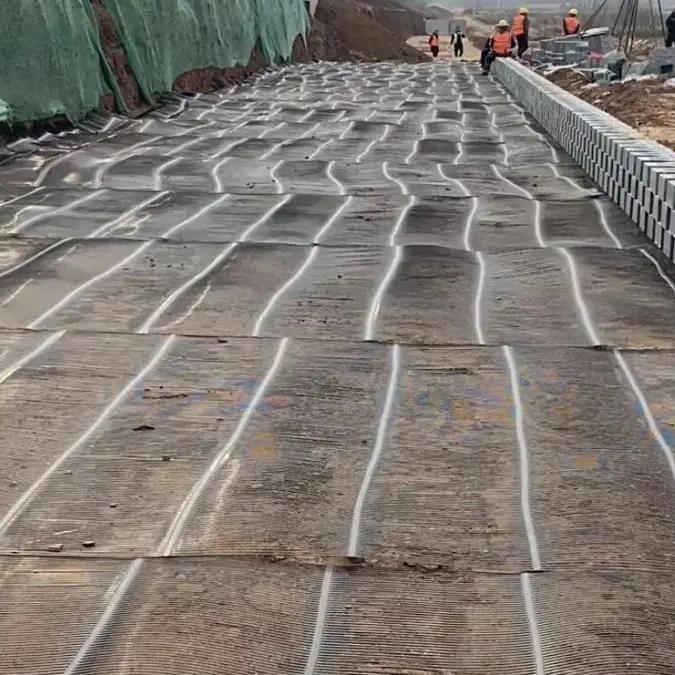

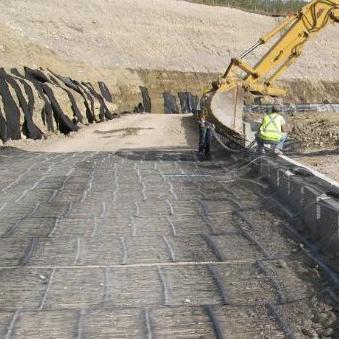

Application Cases
These products have been widely used in more than 300 projects in the fields of environmental protection, expressways, railways, golf courses, etc. The company has accumulated rich engineering experience. It enjoys a reputation of "good quality and high standard" in the industry, and has received unanimous praise from the engineering community and a large number of users. Moreover, it has established close cooperative relationships with dozens of scientific research and design units and universities across the country.
