Plane geocell

The plane geocell has a certain strength and rigidity, can withstand the pressure and lateral force of the soil, and play a role in strengthening the soil. Its cell structure can disperse stress and improve the overall stability of the soil.

Commodity name： Plane geocell

Classification:

Geocell

WhatsApp:

Email:

Delivery Time

10-15 days after receiving payment

Delivery Method

Send in the best possible way

Delivery Time

Usually 15-30 days

Product Description

Good plane development: It can provide a larger reinforcement range in the horizontal direction.

Convenient construction: It is relatively easy to lay and fix, saving construction time and labor costs.

Plane geocells are widely used in the following aspects:

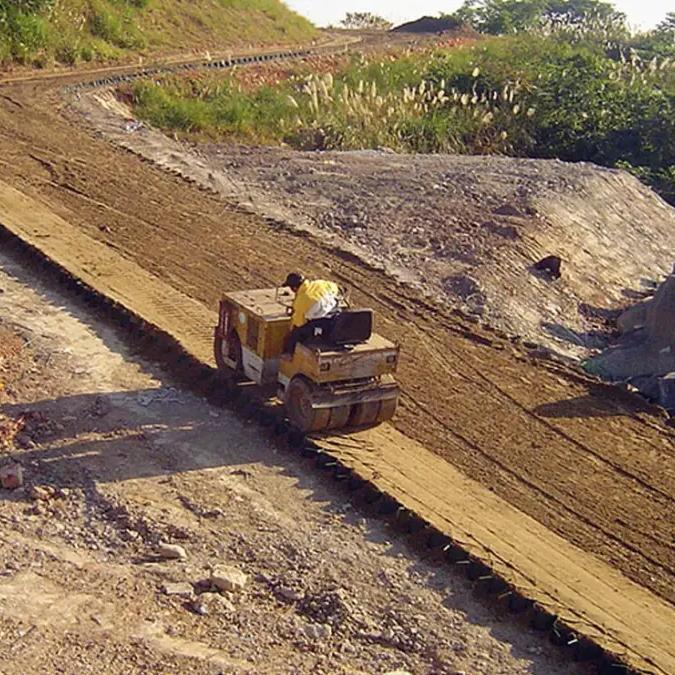

Filling projects: For example, in embankment filling, it can evenly distribute the load and reduce the uneven settlement of the filling.

For example, in a certain urban road filling project, the use of plane geocells ensures the stability and flatness of the embankment.

Land reclamation: Help improve soil structure and increase the carrying capacity of land.

For example, in the land reclamation of abandoned mining areas, plane geocells promote soil consolidation and vegetation growth.

Item Model	Height(mm)	Welding distance(mm)	Sheet thickness(mm)		Seam peel strength≥(N)	Expanded Cell Size(mm)	Expandedpanel size (m)
Item Model	Height(mm)	Welding distance(mm)	smooth	textured	Seam peel strength≥(N)	Expanded Cell Size(mm)	Expandedpanel size (m)
TGLG-100-330	100	330	1.1	1.5	1420	244X203	2.44X6.15
TGLG-150-330	150				2130	244X203	2.44X6.15
TGLG-200-330	200				2840	244X203	2.44X6.15
TGLG-100-356	100	356	1.1	1.5	1420	259X224	2.56X6.52
TGLG-150-356	150				2130	259X224	2.56X6.52
TGLG-200-356	200				2840	259X224	2.56X6.52
TGLG-100-400	100	400	1.1	1.5	1420	295X250	4X5
TGLG-150-400	150				2130	295X250	4X5
TGLG-200-400	200				2840	295X250	4X5
TGLG-100-445	100	445	1.1	1.5	1420	320X287	2.56X8.35
TGLG-150-445	150				2130	320X287	2.56X8.35
TGLG-200-445	200				2840	320X287	2.56X8.35
TGLG-100-660	100	660	1.1	1.5	1420	488X406	2.44X12.29
TGLG-150-660	150				2130	488X406	2.44X12.29
TGLG-200-660	200				2840	488X406	2.44X12.29
TGLG-100-712	100	712	1.1	1.5	1420	508X475	2.56X13.72
TGLG-150-712	150				2130	508X475	2.56X13.72
TGLG-200-712	200				2840	508X475	2.56X13.72

Key words:

Plane geocell

Factory Appearance

The main products are HDPE unidirectional geogrid, LDPE geomembrane, composite geomembrane, geogrid welding machine, geogrid (HDPE unidirectional Geogrid, bidirectional Geogrid, steel-plastic Geogrid, fiberglass geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, Fiberglass Geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, PE pipe, Non-woven geotextiles, composite geotextiles, geobags) geonet, Composite drainage network, plastic geomesh, geoglass, bentonite synthetic blanket, plastic film, PO film PE film and other geosynthetic materials.

Packaging And Delivery

Our annual outputs have exceeded 300 million square meters, Our main markets are Europe, North America, South America, Australia, some African and Asian countries. exporting to more than 40 countries. We assure not only steady production capability and on-time shipments, but also professional skilled workers and better the quality of products For the satisfaction of our customers.

Application Cases

These products have been widely used in more than 300 projects in the fields of environmental protection, expressways, railways, golf courses, etc. The company has accumulated rich engineering experience. It enjoys a reputation of "good quality and high standard" in the industry, and has received unanimous praise from the engineering community and a large number of users. Moreover, it has established close cooperative relationships with dozens of scientific research and design units and universities across the country.

Customer visit

The company always adheres to the business philosophy of "science and technology first, integrity-based, and win-win coexistence", and sincerely hopes to cooperate extensively with friends at home and abroad to jointly draw a magnificent blueprint!

Customer Feedback

WHY CHOOSE US

High Cost Performance

High quality products and great prices.

Guarantee Quality

Product quality meets international quality inspection standards.

Advanced Equipment

We have introduced the latest production equipment.

Good Service

We have a professional team to serve you.

FAQ

About product prices?

Prices vary from period to period due to cyclical changes in the price of raw materials.

Can you send samples?

Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

How long is your delivery time?

Generally it is 5-10 days . It is according to quantity.

How many SQM of one container can load?

Please contact me by the email or whatsapp,I will send details to you. According to many years of exporting experience,we can save the container space as much as possible.

Can I go to your factory to visit?

Of course, we welcome customers from all over the world to visit our factory.

What is the roll width of your Geotextile Geomembrane ?

The roll width range from 1.5m to 8m. In 20' container,width often in 5.8m;in 40' container,width often in 7m.
