Geotextile dewatering tube bags

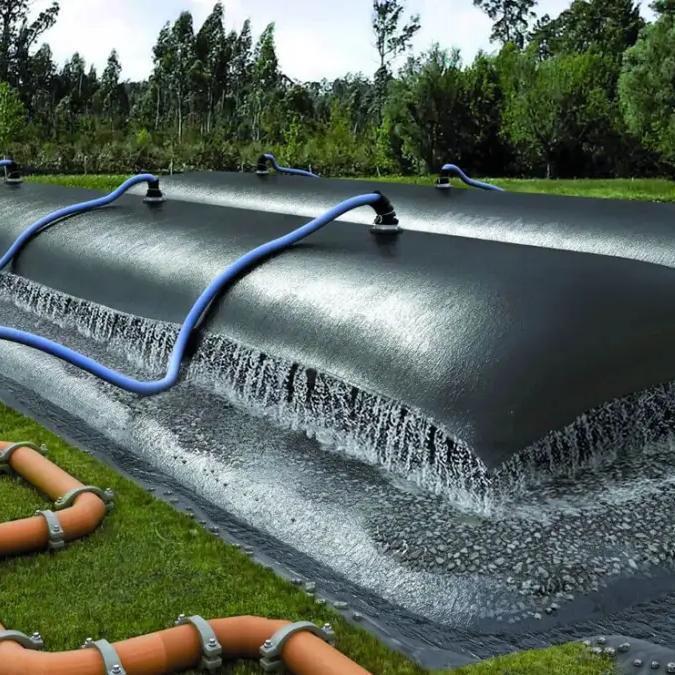

Geotextile dewatering tube bag utilizes the permeability and interception effect of geotextile to quickly and effectively separate the water in mud or sludge and improve the dewatering efficiency. By controlling the dewatering time and pressure, different degrees of dewatering effect can be achieved to meet the requirements of different projects.
- Commodity name： Geotextile dewatering tube bags
Delivery Time
10-15 days after receiving payment
Delivery Method
Send in the best possible way
Delivery Time
Usually 15-30 days
- Product Description
-
1. Good drainage performance: By utilizing the permeability of geotextile and the structure of tube bag, the internal water can be quickly discharged.
2. Filtration and separation effect: Geotextile can effectively filter impurities, prevent soil particles from being lost with water flow, and realize mud-water separation at the same time.
3. Compression resistance: It can still maintain good drainage function when subjected to external pressure, and is not easy to deform and damage.
Application scenarios
1. Water conservancy project: For example, in river channel regulation, it can be used to discharge water from the river bank and enhance the stability of the river bank.
2. Construction: Accelerate the removal of groundwater in foundation engineering and shorten the construction period.
3. Environmental governance: Used to treat sewage, sludge, etc. to achieve dehydration and solid-liquid separation.
Item Unit Technical Parameter Tube 500 Tube 750 Tube 1000 Breaking strength MD KN/m >= 70 120 200 CD KN/m >= 90 120 200 Elongation of break MD %<= 20 20 20 CD %<= 10 10 10 Sewing Tensile strength >=% 80 80 80 Bursting Strength(CBR） KN>= 8 14 18 Equivalent opening size(O90) mm 0.2-0.6 0.2-0.6 0.2-0.6 Permeability(Q50) L/m2/s>= 20 13 15 UV-resistance(500HRS strength retention) %>= 90 80 80
Key words:
Geotextile dewatering tube bags
Factory Appearance
The main products are HDPE unidirectional geogrid, LDPE geomembrane, composite geomembrane, geogrid welding machine, geogrid (HDPE unidirectional Geogrid, bidirectional Geogrid, steel-plastic Geogrid, fiberglass geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, Fiberglass Geogrid) Geotechnical pipe, HDPE double wall corrugated pipe, HDPE drain pipe, PE pipe, Non-woven geotextiles, composite geotextiles, geobags) geonet, Composite drainage network, plastic geomesh, geoglass, bentonite synthetic blanket, plastic film, PO film PE film and other geosynthetic materials.

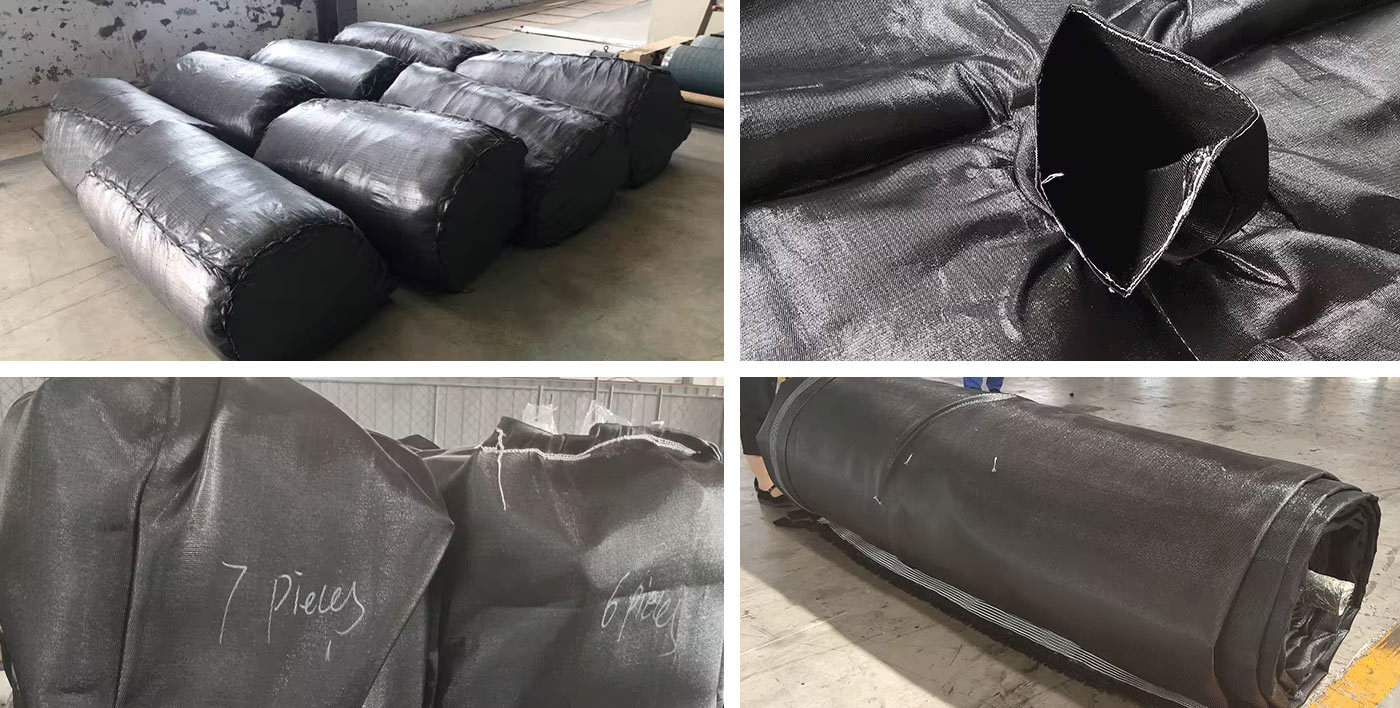

Packaging And Delivery
Our annual outputs have exceeded 300 million square meters, Our main markets are Europe, North America, South America, Australia, some African and Asian countries. exporting to more than 40 countries. We assure not only steady production capability and on-time shipments, but also professional skilled workers and better the quality of products For the satisfaction of our customers.

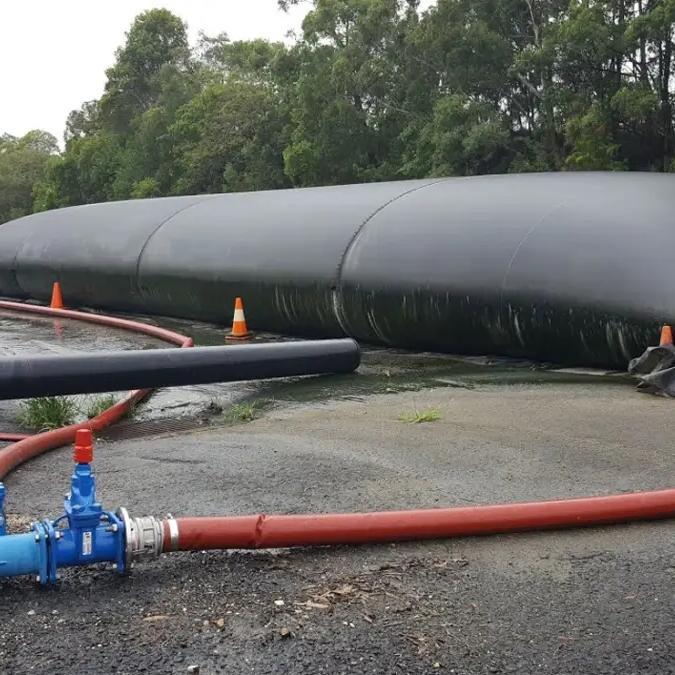

Application Cases
These products have been widely used in more than 300 projects in the fields of environmental protection, expressways, railways, golf courses, etc. The company has accumulated rich engineering experience. It enjoys a reputation of "good quality and high standard" in the industry, and has received unanimous praise from the engineering community and a large number of users. Moreover, it has established close cooperative relationships with dozens of scientific research and design units and universities across the country.
Customer visit
The company always adheres to the business philosophy of "science and technology first, integrity-based, and win-win coexistence", and sincerely hopes to cooperate extensively with friends at home and abroad to jointly draw a magnificent blueprint!
Customer Feedback
WHY CHOOSE US
High Cost Performance
High quality products and great prices.
Guarantee Quality
Product quality meets international quality inspection standards.
Advanced Equipment
We have introduced the latest production equipment.
Good Service
We have a professional team to serve you.
FAQ
About product prices?
Can you send samples?
How long is your delivery time?
How many SQM of one container can load?
Can I go to your factory to visit?
What is the roll width of your Geotextile Geomembrane ?
